When running a 2V p-p signal through it, using a 0.110mA (15V/136k) control current I got an output signal with the same amplitude, but the sine wave had been visibly distorted. Suspecting that this was only a simulation problem, I tried breadboarding the circuit. The distortion was even more visible on the oscilloscope.
|2V p-p input (green), distorted output (blue)|
|Adjusted input, 1V p-p|
|Adjusted amplitude. Output wave is still distorted, though not as much as earlier|
|An annotated Juno 106 service manual showing the various voltages. I can't quite remember where I got it, but I THINK Analogue renaissance made it?|
To see how the BA662 is actually used in the circuit, I added the resistors between VCF out and VCA in (though not the VCA offset pot) and set the pot to 25k. Without changing the control current I got this:
|Clone as used in the Juno 106 - with the 50k pot centered. Ampitude is MUCH lower.|

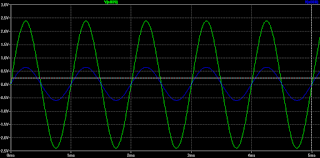

|Same configuration but with the control current at 0.3mA, which according to the picture above is the maximum. Notice that the amplitude is alost a quarter of the input. Even if we increase the control current, we are unable to reach unity gain.|
I will have to recheck the Xonik Linear VCA to see it it suffers from the same distortion problems. From my notes I see that I run it using a control current up to 1.5mA.
